Vacuum Oven
Vacuum Oven

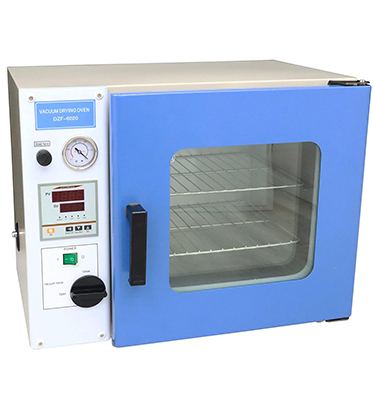

Vacuum Oven Description
A Vacuum Oven is a high-performance laboratory and industrial heating system designed for drying, degassing, curing, and moisture removal of heat-sensitive and oxygen-sensitive materials under controlled vacuum conditions. By operating under reduced pressure, the vacuum oven lowers the boiling point of solvents, enabling fast and uniform drying at lower temperatures without oxidation or thermal damage.
Our vacuum ovens are widely used across pharmaceutical manufacturing, chemical laboratories, biotechnology research, electronics, material science, and industrial R&D facilities in India, UAE, and global markets. The equipment is engineered to meet international quality standards and supports continuous laboratory operations with consistent performance.
Vacuum Oven Features
- Wide temperature range suitable for pharmaceutical, chemical, and industrial applications
- Advanced Digital PID / Microprocessor temperature controller
- High-efficiency vacuum system for rapid moisture and solvent removal
- Stainless steel inner chamber ensuring corrosion resistance and hygiene compliance
- Double-layer tempered glass observation window for safe sample monitoring
- Uniform heat distribution across all shelves
- High-grade silicone gasket for reliable vacuum sealing
- Adjustable stainless steel shelves for flexible sample loading
- Built-in over-temperature and safety protection system
- Compatible with external vacuum pumps as per user requirement
| Parameter | Specification |
|---|---|
| Chamber Volume | 10 L – 1000 L |
| Temperature Range | RT +10 °C to 200 °C (Optional up to 250 °C) |
| Temperature Accuracy | ±1 °C |
| Temperature Resolution | 0.1 °C |
| Vacuum Degree | ≤ 133 Pa |
| Controller Type | Digital PID / Microprocessor |
| Inner Chamber Material | SS 304 (SS 316 Optional) |
| Outer Body | Powder-coated Mild Steel |
| Display | LED / LCD Digital Display |
| Power Supply | 220–240 V AC, 50 Hz |
| Safety Features | Over-temperature protection, Vacuum release valve |
Applications of Vacuum Oven
- Pharmaceutical drying and formulation processing
- Chemical synthesis and analytical laboratories
- Biotechnology and life science research
- Electronic component and PCB drying
- Material science testing and composite curing
- Degassing of resins, polymers, and adhesives
Why Choose Our Vacuum Oven?
Our vacuum ovens are manufactured to meet global laboratory and industrial requirements. With robust construction, precise temperature control, and reliable vacuum performance, these systems are trusted by laboratories and industries across India, the Middle East (UAE), Europe, Asia, and international markets. Custom configurations, competitive pricing, and export-ready packaging make our vacuum ovens an ideal choice worldwide.
